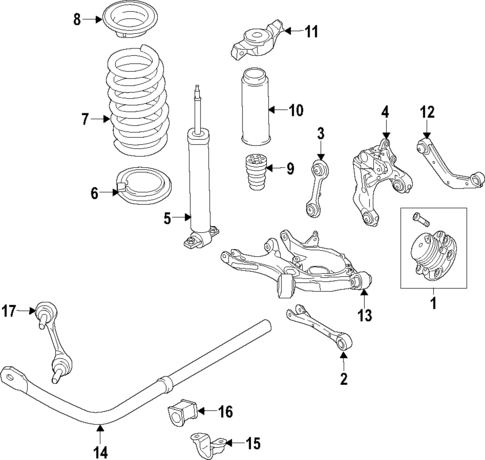

Rear Suspension for 2018 Lincoln MKX
No.
Part # / Description / Price
Price
N/A
Control Module
Ford
Ford Description: MKX. Suspension damping. Ccd control module. MKZ. From 11/18/15 to 3/15/18. Fusion. From 3/15/18 to 8/21/18.
$258.50
$258.50
1
Hub & Bearing Assembly Ford
Ford Description: Edge. With awd. Continental. MKX. Nautilus. Fusion. With 2.7l. MKZ. With sport.
$361.82
$361.82
1
Hub Assembly Ford
Ford Description: Without awd. Edge. MKX. Nautilus. Continental. Fwd. To 2/21/2018. From 2/21/2018.
$378.18
$378.18
1
Motorcraft™ Wheel Bearing And Hub Assembly Ford
Ford Description: Without awd. Edge. MKX. Nautilus. Continental. Fwd. To 2/21/2018. From 2/21/2018.
$378.18
$378.18
4

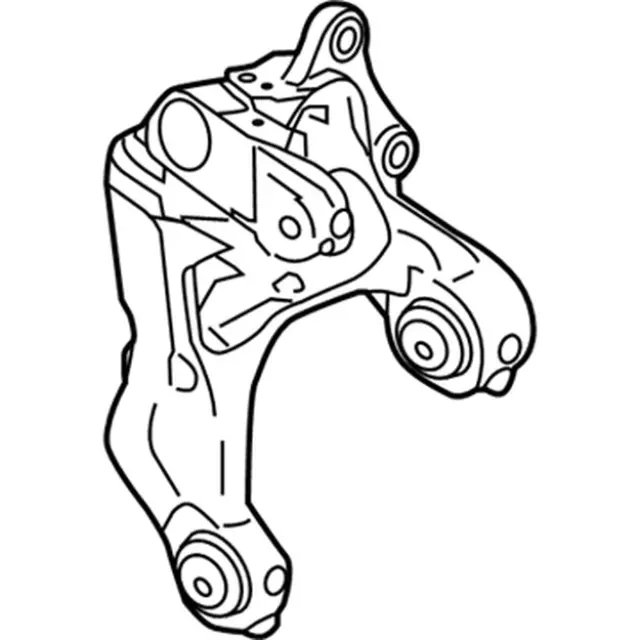

Knuckle Ford
Ford Description: Edge. MKX. Nautilus. With awd. Left. To 03-13-2023. Fwd. From 03-13-2023.
$428.33
$428.33
4
Knuckle Ford
Ford Description: Edge. MKX. Nautilus. Without awd. Right. To 03-13-2023. Fwd. From 03-13-2023.
$428.33
$428.33
5

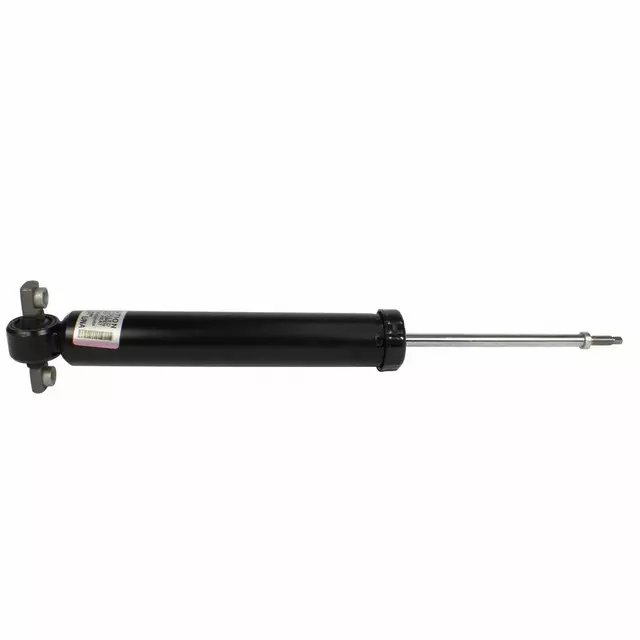

Shock Absorber Assembly Ford
Ford Description: Exc.Electronic Controlled Suspension. Exc.21" Wheels. Without awd, without continuous damping, 20 wheels. MKX. Standard suspension. 18, 20 wheels. Edge. 2.7l. Fwd.
$172.73
$172.73
5

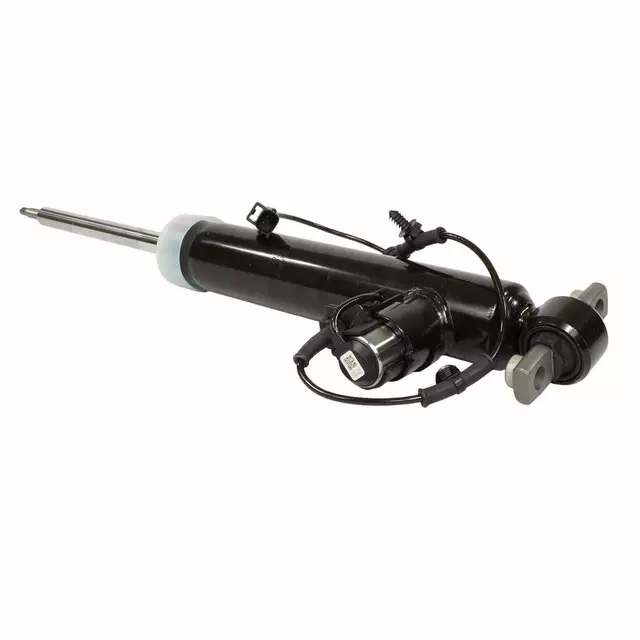

Shock Absorber Assembly Ford
Ford Description: Electronic Controlled Suspension. MKX. Continuous damping susp.. Left. Nautilus. With active damping susp.. Fwd, with continuous damping. Awd, with continuous damping.
$454.55
$454.55
5

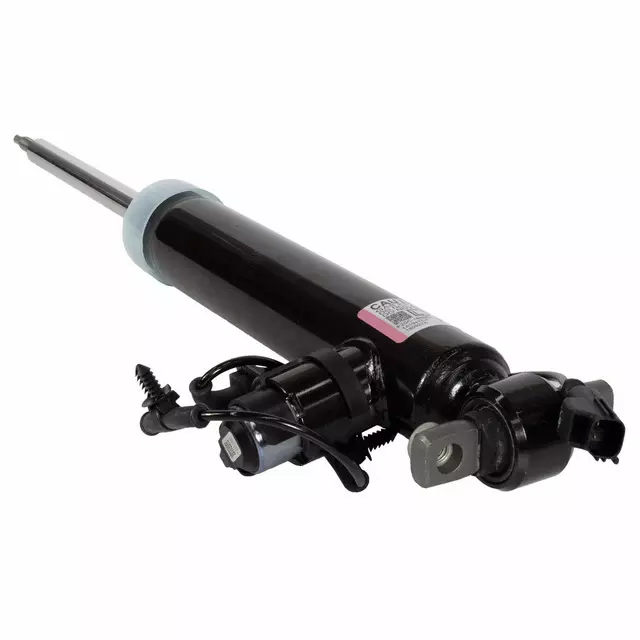

Shock Absorber Assembly Ford
Ford Description: Electronic Controlled Suspension. MKX. Continuous damping susp.. Right. Nautilus. With active damping susp.. Awd, with continuous damping.
$454.55
$454.55
5
Shock Absorber Assembly Ford
Ford Description: Exc.Electronic Controlled Suspension. 21" Wheels. MKX. Standard suspension. 21 wheels. Nautilus. Without active damping susp. Edge. 2.7l. Awd.
$118.18
$118.18
5
Shock Absorber Ford
Ford Description: MKX. Standard suspension. 21 wheels. Nautilus. Without active damping susp. Fwd, without continuous damping, without continuous damping. Edge. 2.7l. Awd.
$118.18
$118.18
5
Suspension Shock Absorber Ford
Ford Description: With awd, without continuous damping, 18 wheels. With awd, without continuous damping, 20 wheels. MKX. Standard suspension. 18, 20 wheels. Exc.Electronic Controlled Suspension. Exc.21" Wheels. Edge. 2.7l. Fwd.
$172.73
$172.73
5
Shock Absorber Ford
Ford Description: MKX. Continuous damping susp.. Right. Nautilus. With active damping susp.. Fwd, with continuous damping. Awd, with continuous damping.
$454.55
$454.55
5
Shock Absorber Ford
Ford Description: MKX. Continuous damping susp.. Left. Nautilus. With active damping susp.. Awd, with continuous damping.
$454.55
$454.55
7
Coil Spring Ford
Ford Description: MKX. Marked f2gz-5560-mnc*. Fwd, stamping f2gc-mnc. Awd, stamping f2gc-mnc.
7
Coil Spring Ford
Ford Description: MKX. Marked f2gz-5560-lnc*. Without awd, stamping f2gc-lnc. Fwd, stamping f2gc-lnc.
$194.33
$194.33
7
$190.67
7
$212.67
7
$207.17
7
$176.67
9
Bumper Ford
Ford Description: Continental. MKX. Continuous damping susp. Nautilus. Continuous control susp. Awd, with continuous damping. Fwd, with continuous damping.
$51.88
$51.88
9
Bumper Ford
Ford Description: Edge. Sport tuned suspension. MKX. Nautilus. Standard susp. Awd, without continuous damping, without continuous damping. Awd, sport tuned susp. Fwd, with sport susp.
$66.18
$66.18
10
Dust Shield Ford
Ford Description: Without shelby. Edge. Continental. Without awd. MKX. Nautilus. With adaptive damping. Mustang. With magnetic damping. Fwd.
$41.50
$41.50
11
Motorcraft™ Upper Mount Ford
Ford Description: Edge. Standard suspension. MKX. Nautilus. Awd. Fwd.
$95.27
$95.27
12
Motorcraft™ Upper Control Arm Ford
Ford Description: Incl.Bushings. Edge. MKX. Nautilus. With awd. Left.
$130.73
$130.73
12
$150.33
12
$129.98
13
Lower Control Arm Ford
Ford Description: Edge. Left. Continental. MKX. Nautilus. Without awd. Fwd.
$495.00
$495.00
13
Lower Control Arm Ford
Ford Description: Edge. Right. Continental. With awd, from 09/20/2017. MKX. Nautilus. Without awd. Fwd.
$495.00
$495.00
14
Stabilizer Bar Ford
Ford Description: MKX. With awd. Nautilus. 2.7l. Awd, 2.7L. Edge. 2.7l. Edge. 3.5l.
$238.33
$238.33
14
Stabilizer Bar Ford
Ford Description: MKX. Fwd. Awd. Nautilus. 2.0l. Edge. 2.0l. Nautilus. 2.7l. Edge. 3.5l.
$238.33
$238.33
16
Bushing Ford
Ford Description: Fusion. 2.0l. Without hybrid. MKX. Nautilus. Edge. 2.0l. Without awd, 2.0L turbo. Edge. 2.7l. Edge. 3.5l. Fwd.
$27.50
$27.50
17
Stabilizer Link Ford
Ford Description: Mustang. Without shelby. Edge. Awd. Continental. MKX. Nautilus. Fwd. Coupe. Convertible.
$72.73
$72.73
No.
Part # / Description / Price
Price

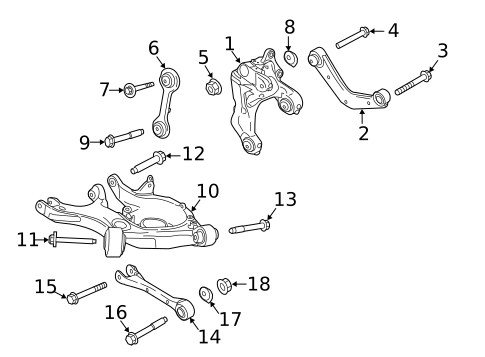

1
Knuckle Ford
Ford Positions: Left
Description: Edge. MKX. Nautilus. With awd. Left. To 03-13-2023. Fwd. From 03-13-2023.
$428.33
$428.33
2
Motorcraft™ Upper Control Arm Ford
Ford Positions: Left
Description: Incl.Bushings. Edge. MKX. Nautilus. With awd. Left.
$130.73
$130.73
2
$150.33
3
Upper Control Arm Mount Bolt Ford
Ford Positions: Right
Description: Lower. Coil spring. With awd. Fwd. Air spring. Upper cntrl arm,mount bolt.
$16.00
$16.00
7
Trailing Arm Mount Bolt Ford
Ford Positions: Left
Description: Without sport. With shelby. With brembo brakes, m12x104mm. With brembo brakes, m16x112mm. Without brembo brakes, outer. Fwd. Without awd, to 02/16/2014.
$3.07
$3.07
9
Link Rod Lower Bolt Ford
Ford Positions: Left
Description: Without sport. Without awd, front, inner. With shelby, m14x82mm. Without brembo brakes, m14x82mm. Fwd. 2021-23.
$3.08
$3.08
11
Lower Control Arm Mount Bolt Ford
Ford Positions: Right
Description: Without sport, m16x97mm. Without shelby, m16x97mm. Without awd. Without brembo brakes, m16x97mm. Fwd.
$9.25
$9.25
12
Lower Control Arm Rear Bolt Ford
Ford Positions: Right
Description: Without shelby, m16x118mm. With awd. Awd, center. Rwd, center. Fwd.
$12.00
$12.00
13
Lower Control Arm Mount Bolt Ford
Ford Positions: Left
Description: Without sport, m16x114. With shelby, m16x114mm. Without brembo brakes, m16x114mm. Fwd. Without awd, m16x114.
$12.00
$12.00
14
$36.12
15
Shock Lower Bolt Ford
Ford Positions: Left
Description: Without 4wd. Without brembo brakes. 2wd, 2010-12. Awd, 2010-12. Fwd. With awd, 2013-16. Awd 2013-19. Shock,lower bolt.
$6.75
$6.75
16
Lower Control Arm Adjust Bolt Ford
Ford Positions: Right
Description: Without sport. Without shelby. With awd. Without brembo brakes. Fwd.
$34.55
$34.55
16
Motorcraft™ Lower Control Arm Adjust Bolt Ford
Ford Positions: Right
Description: Lateral arm,adjust bolt. Trailing arm,adjust bolt. With shelby. With brembo brakes. Fwd. With awd with sport. Cam Bolt.
$34.55
$34.55
17
Lower Control Arm Adjust Cam Ford
Ford Positions: Right
Description: Without sport. With awd. With shelby. Without brembo brakes. Fwd.
$15.45
$15.45
18
Trailing Arm Lock Nut Ford
Ford Positions: Right
Description: With awd. Rwd. With shelby. Without brembo brakes. Fwd.
$5.00
$5.00
No.
Part # / Description / Price
Price
1
Knuckle Ford
Ford Positions: Right
Description: Edge. MKX. Nautilus. Without awd. Right. To 03-13-2023. Fwd. From 03-13-2023.
$428.33
$428.33
2
Upper Control Arm Ford
Ford Positions: Right
Description: Fwd. Edge. Right. MKX. Without awd. Nautilus.
$129.98
$129.98
2
Upper Control Arm Ford
Ford Positions: Left
Description: Fwd. Edge. Left. MKX. Without awd. Nautilus.
$129.98
$129.98
3
Upper Control Arm Mount Bolt Ford
Ford Positions: Left
Description: Lower. Coil spring. With awd. Fwd. Air spring. Upper cntrl arm,mount bolt.
$16.00
$16.00
4
Trailing Arm Mount Bolt Ford
Ford Positions: Left
Description: Without sport. With shelby. With brembo brakes, m12x104mm. With brembo brakes, m16x112mm. Without brembo brakes, outer. Fwd. Without awd, to 02/16/2014.
$3.07
$3.07
8
Link Rod Nut Ford
Ford Positions: Right
Description: Without sport. Fwd. With awd. 2021-24. 2wd. Without brembo brakes. 4wd, 2022-24. 4wd, 2025.
$2.37
$2.37
9
Link Rod Lower Bolt Ford
Ford Positions: Right
Description: Without sport. Without awd, front, inner. With shelby, m14x82mm. Without brembo brakes, m14x82mm. Fwd. 2021-23.
$3.08
$3.08
11
Lower Control Arm Mount Bolt Ford
Ford Positions: Left
Description: Without sport, m16x97mm. Without shelby, m16x97mm. Without awd. Without brembo brakes, m16x97mm. Fwd.
$9.25
$9.25
13
Lower Control Arm Mount Bolt Ford
Ford Positions: Right
Description: Without sport, m16x114. With shelby, m16x114mm. Without brembo brakes, m16x114mm. Fwd. Without awd, m16x114.
$12.00
$12.00
14
$36.12
16
Motorcraft™ Lower Control Arm Adjust Bolt Ford
Ford Positions: Left
Description: Lateral arm,adjust bolt. Trailing arm,adjust bolt. With shelby. With brembo brakes. Fwd. With awd with sport. Cam Bolt.
$34.55
$34.55
17
Lower Control Arm Adjust Cam Ford
Ford Positions: Left
Description: Without sport. With awd. With shelby. Without brembo brakes. Fwd.
$15.45
$15.45
18
Trailing Arm Lock Nut Ford
Ford Positions: Left
Description: With awd. Rwd. With shelby. Without brembo brakes. Fwd.
$5.00
$5.00
