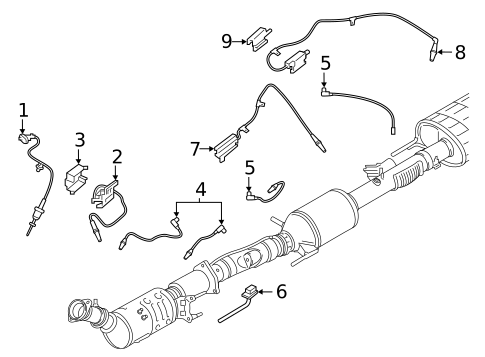

Diesel Aftertreatment System for 2018 Ford F-150
No.
Part # / Description / Price
Price
1
Temp Sensor
Ford
Ford Positions: Left
Description: 3.0L, sensors. F-150. Exhaust gas temp sensor. 3.0l. Left.
$165.45
$165.45
1
Temp Sensor Ford
Ford Positions: Right
Description: 3.0L, sensors. F-150. Exhaust gas temp sensor. 3.0l. Right.
$145.09
$145.09
2
Sensor Ford
Ford Description: 3.0L, sensors. Nox sensor. F150. 3.0l diesel. Front. F-150. 3.0l.
$1,407.27
$1,407.27
3
$7.22
5
Exhaust Temp Sensor Ford
Ford Description: Exhaust. F250, f350 super duty. 6.7l diesel. Ex. gas temp sensor. 3.2L, egr components, upper. 6.7L, egr valve & cooler, #1, 4. Location-Catalytic Converter. F150. 3.0l diesel. Sensors 3 & 4. Location-Before Diesel Particulate Filter.
$220.00
$220.00
6
Motorcraft™ Pressure Sensor Ford
Ford Description: Pressure sensor. F150. 3.0l diesel. 3.0L, sensors.
$192.20
$192.20
6
$192.20
7
$507.83
9
$2.10
No.
Part # / Description / Price
Price
3
Mount Bracket Lower Insulator Ford
Ford Description: Emission reduction system. 3.0L, diesel injection.
$42.72
$42.72
4
Mount Bracket Upper Insulator Ford
Ford Description: Emission reduction system. 3.0L, diesel injection.
$5.70
$5.70
5
Pump Assembly Ford
Ford Description: Ford Parts are the Only parts designed and built to the specific Standards of Ford Motor Company and are the Only parts recommended for use in your Ford or Lincoln vehicle. F150. 3.0l Diesel. 3.0L, Diesel injection. Reductant pump Assembly. 6.7L, Emission Reduction System. F250, f350, f450, f550. 6.7l Diesel.
$1,433.33
$1,433.33
7
Motorcraft™ Diesel Exhaust Fluid (Def) Pump Lock Ring Ford
Ford Description: 6.7L, emission reduction system. 5.0L. 2.3L. 3.0L, diesel injection. 3.7L. With supercharger.
$54.73
$54.73
7
Sending Unit Retainer Ring Ford
Ford Description: Emission reduction system. 5.0L. 2.3L. 3.0L, diesel injection. 3.7L. With supercharger.
$54.73
$54.73
9
Lower Housing Nut Ford
Ford Description: 3.0L, diesel injection. Front, with auto ac, 2025, type 1.
$4.00
$4.00
10
Heat Shield Retainer Ford
Ford Description: 122.5 wheelbase. 5.0L. 3.5L ecoboost. Emission reduction system. 2.7L. 3.5L powerboost. 131.6 wheelbase. 3.0L, diesel injection. 3.3L. 3.5L without turbo.
$5.00
$5.00
12
Diesel Exhaust Fluid (Def) Pump Ford
Ford Description: 3.0L, diesel injection. F150. 3.0l diesel. Emission reduction system. Module.
$300.67
$300.67
13
$9.25
15
$5.33
16
$12.79
17
$271.33
18
$344.29
19
$26.40
No.
Part # / Description / Price
Price
5
Catalytic Converter 1 Ford
Ford Notes: PARTS: Order by application.
Description: 3.0L, 157 wheelbase.
$1,789.86
$1,789.86
5
Catalytic Converter 1 Ford
Ford Notes: PARTS: Order by application.
Description: 3.0L, 145 wheelbase.
$1,774.14
$1,774.14
12
$707.61
13
Muffler Front Bracket Ford
Ford Description: 2015-17. 3.7L, from 1/04/11. 3.0L. 2.7L. 3.3L. 3.5L without turbo.
$39.64
$39.64
14
Muffler Rear Bracket Ford
Ford Description: 5.0L. 2.7L. 3.0L. 3.3L. 3.5L with turbo, with dual exhaust. 3.5L without turbo. 3.5L, 2017-20.
$43.05
$43.05
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
